Design

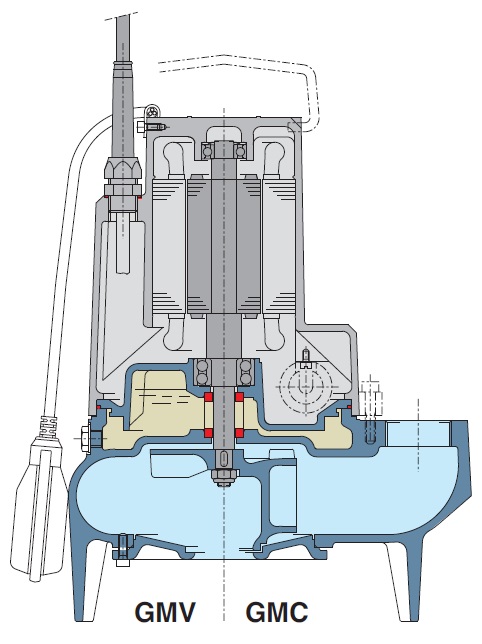

Monoblock submersible pumps.
GMC: single channel impeller.
GMV: deposited impeller (vortex type).
Shaft seal: Double mechanical oil chamber seal, dry running protected.  body diameters up to 45 mm for GMC, 50 mm for GMV for fluids compatible with pump materials.  -eleven.

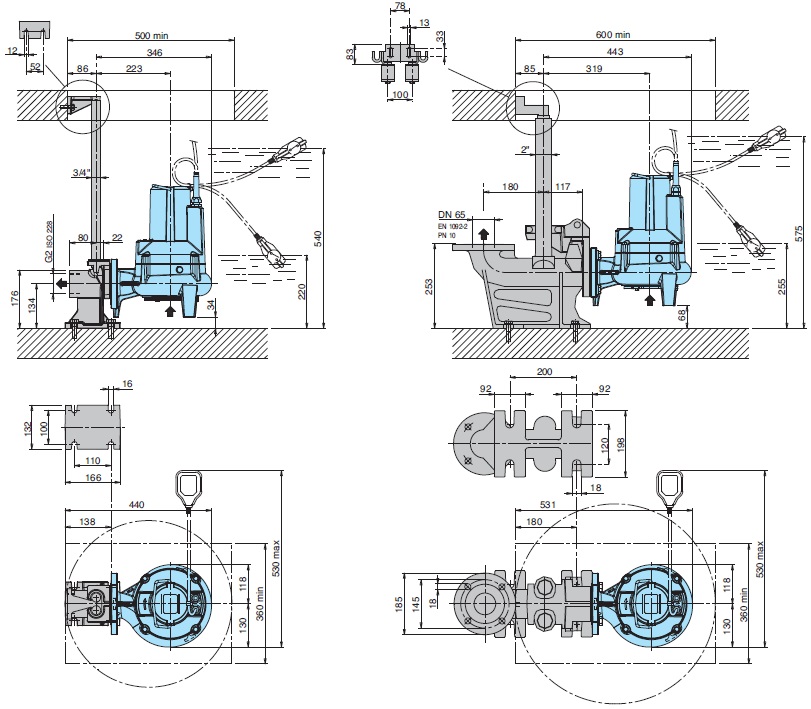

Maximum immersion depth 10 m (with
appropriate cable length).
Continuous operation (with submersible motor).

electric motor

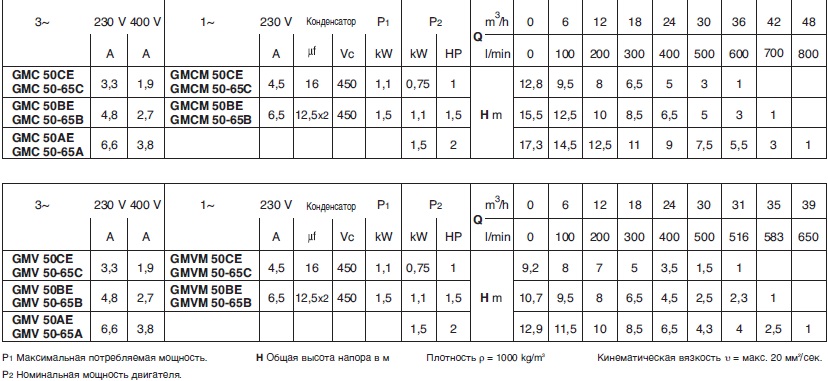

Induction motor, 2-pole, 50 Hz, 2900 rpm.  GMC, GMV: 3-phase 230 V (±10%) 3-phase 400 V (±10%) 2 built-in thermal protectors are connected to the control board.  Cable: 4G1.5 mm2 + 2G0.5 mm2, length 10 m. GMCM, GMVM: single-phase 230 V (±10%) Float switch.  Sheathed thermal protector and built-in capacitor.  Cable: 3G1.5 mm2, type H07RN8-F, Yume length plug (CEI-UNEL 47166).  Class "F" insulation.  IP X8 protection.  Winding with triple impregnation resistant to moisture.
Execution in accordance with EN 60 335-2-41.

Special executions on request

- other voltages
- frequency 60 Hz (see catalog for frequency 60 Hz)
- other mechanical seals
- cable length 20 m

download the entire  calpeda          catalog download the GM50 catalog

download manual GM50               download spare parts GM50

  ;                                  download calpeda price list

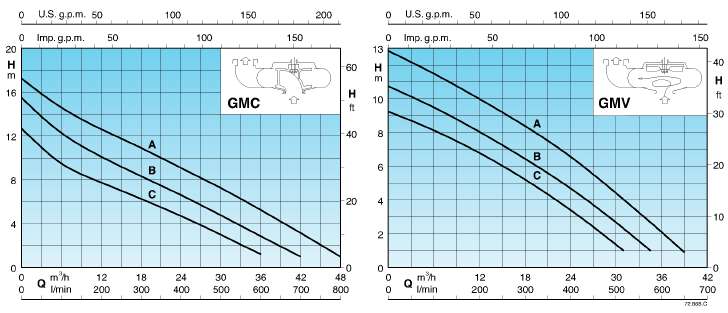

n = 2900 rpm

Submersible pumps for dirty water GM50
